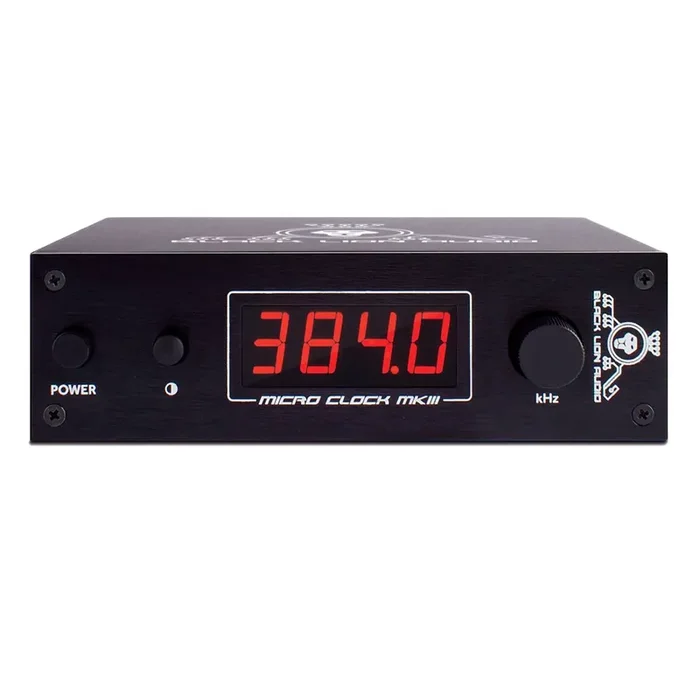

Black Lion Audio Micro Clock MkIII External Clock

Description

Tighten Up Your Audio Signal With The Black Lion Audio Micro Clock MkIII External Clock

The Micro Clock MKIII is the culmination of almost 10 years of research involving jitter-reducing, harmonic-enhancing design techniques not found in any other master word clocks on the market. It not only can sync all of your digital audio gear together, but can significantly improve the sound quality as well. It may be the most significant single upgrade you can make to your digital audio setup. Get ready to hear what youâ ™ve been missing!

The Micro Clock MKIII is a significant redesign of its predecessor, the Micro Clock MKII. Core technological improvements include lower-jitter crystal oscillators, higher-quality galvanic transformer isolation in the signal path, dedicated output drivers with better isolation, higher-precision signal division, and much heavier noise filtration throughout the circuit. All of this results in a more robust, lower-jitter clock signal than the Micro Clock MKII, with even more desirable harmonics in the clockâ ™s spectral band that impart an undeniable musical quality to the conversion process. The feature set has expanded to include an LED frequency display, six BNC outputs capable of up to 384kHz, AES and RCA S/PDIF outputs capable of up to 192kHz, an optical S/PDIF output capable of up to 96kHz, and removable rack ears.

Ultra-low jitter, harmonically-enhanced word clock signal generation

Dimmable frequency display

8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz)

6 BNC outputs with dedicated output drivers for maximum isolation

RCA S/PDIF output

Optical S/PDIF output

AES output

Full & 1/2 rack removable rack ears

Locking frequency selector knob

Jitter: 1.92pS RMS (BNC outputs)

Outputs: 6 BNC, 1 XLR AES, 1 RCA S/PDIF, 1 Optical S/PDIF (recommended max. cable length = 1,000ft of high quality, 75 ohm coaxial cable)

BNC: 75 ohms, 5V unterminated

RCA S/PDIF: 75 ohms, unbalanced

AES XLR: 110 ohms, balanced

Clock Frequencies:

BNC (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384

RCA S/PDIF & AES (kHz) – 44.1, 48, 88.2, 96, 176.4, 192

Optical S/PDIF (kHz) – 44.1, 48, 88.2, 96

Power: 9VDC (6W power consumption)

Power connector: 2.1mm barrel connector with 5.5mm outer diameter (center pin positive)

Weight: 2.2lbs

Dimensions: 6.5″L x 6″W x 1.75″H (without rack ears installed)

Shipping Dimensions: 13x13x5

Shipping weight: 4lbs

Manufacturer: Black Lion Audio
Model: MICROCLOCKMK3
SKU: I355608-N-0-WHXB
UPC: 700254867144
