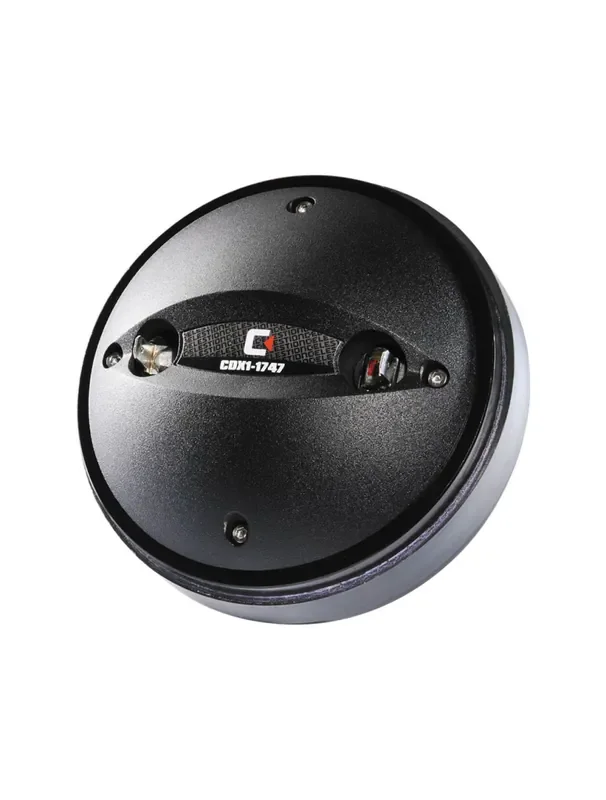

Celestion CDX1-1747 1″ Exit HF Driver – 8 ohm

Description

1-inch exit ferrite magnet compression driver

• Single piece polyimide diaphragm and surround
• Sound Castle soft clamping diaphragm assembly
• 1,600Hz recommended min. crossover freq (12dB/oct)
• Bolt fitting
• Power rating : 60W
• Continuous power rating : 120W
• Rated impedance : 8Ω
• Sensitivity : 110dB
• Frequency range : 1000-20,000Hz
• Recommended min. crossover (12dB/oct) : 1600Hz
• Magnet type : Ferrite
• Voice coil diameter : 44mm / 1.75in
• Voice coil material : Edgewound copper clad aluminium
• Diaphragm material : Polyimide
• Surround material : Polyimide

Mounting Information

• Width : 120mm / 4.7in
• Depth : 53mm / 2.1in
• Fitting : Bolt (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)
• Screw version : CDX1-1748
• Throat exit : 25mm / 1in

Horns and Repair Kits

• T5572 : Diaphragm repair kit (8Ω)
• T5359 : H1-9040P Horn
• T5134 : H1-7050 ‘No Bell’ Horn
• Power rating : Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
• Continuous power rating : Defined as 3dB greater than the AES rating.
• Sensitivity : Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment.
