Description

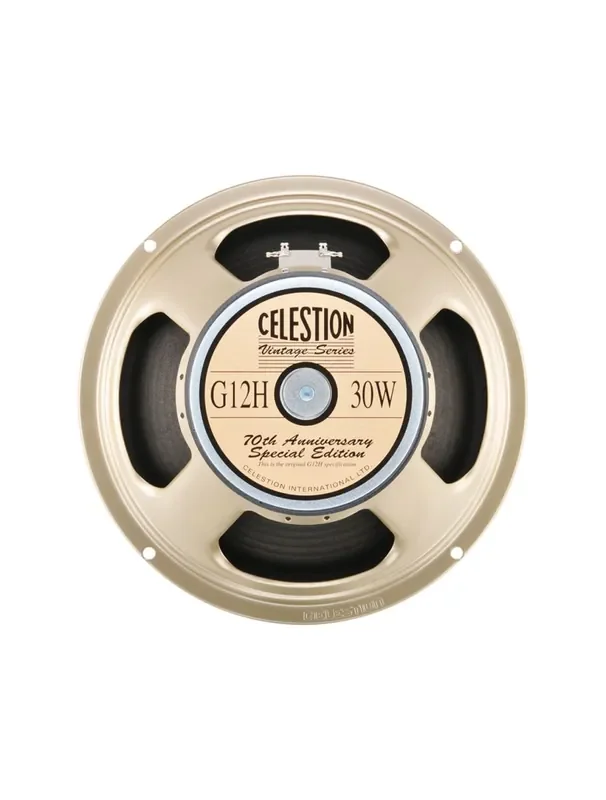

Originally re-released to celebrate our 70th Anniversary, the G12H guitar speaker remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.
With a strong aggressive low-end and powerful low-mids the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones easily cutting through loud stage levels for chord work and imparting a hard edge to single notes. A favourite in the ’boutique’ amplifier market the G12H guitar speaker is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.
- Nominal diameter : 305mm / 12in
- Power rating : 30W
- Rated impedance : 16Ω
- Sensitivity : 100dB
- Chassis type : Pressed steel
- Magnet type : Ceramic
- Voice coil diameter : 1.75in / 44mm
- Voice coil material : Round copper
- Frequency range : 75-5000Hz
- Resonance frequency, Fs : 85Hz
- DC resistance, Re : 6.7Ω and 13.1Ω
Mounting Information
- Cut-out diameter : 283mm / 11.1in
- Diameter : 309mm / 12.2in
- Magnet structure diameter : 156mm / 6.1in
- Mounting hole dimensions : 7.9mm / 0.31in Ø
- Mounting hole PCD : 297mm / 11.7in
- Number of mounting holes : 4
- Chassis depth (inc gasket) : 97mm / 3.79in
- Magnet depth : 38mm / 1.51in
- Overall depth : 135mm / 5.3in
| CODE | CLS-T4534BWD |
|---|---|
| Brand | Celestion |
| Weight | 10.100000 |
