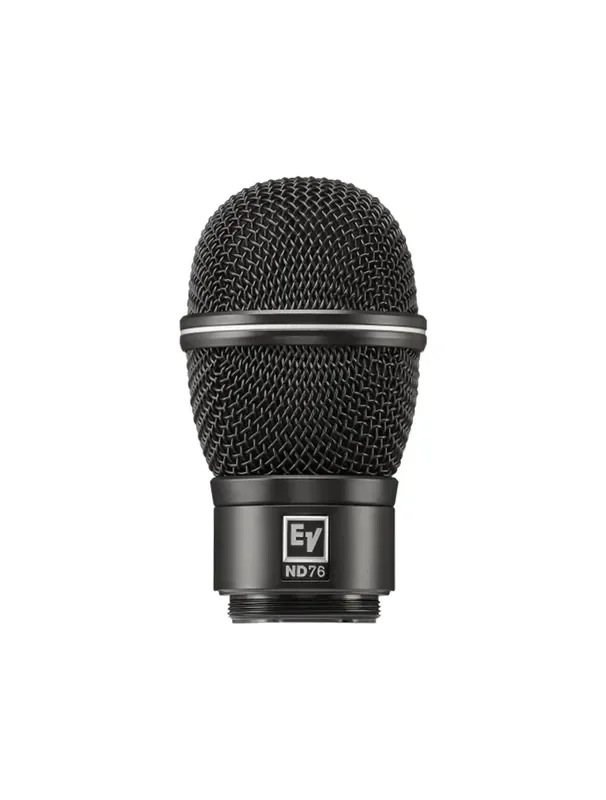

Electro-Voice ND76-RC3

Description

The Electro-Voice ND76-RC3 is a robust, high-performance, dynamic cardioid thread-on vocalmicrophone head for wireless handheld transmitters. This microphone head electrically and mechanically adapts to Electro-Voice (and many other brands) wireless handheld transmitters that use the common 3-contact rings, 1.25” diameter by 28-thread pitchcoupling convention. The floating captured ID collarwill spin freely until screwing the head on tightly. It will remain locked in place when fully tightened. This allows the desired orientation of the branding to the transmitter.

Designed for excellent all-around voice applications,the precisely tuned capsule delivers crisp, clear, andbalanced vocal presence, as well as superior isolation from sound on the stage. The microphone head’s dynamic capsule contains a large Mylar diaphragm, which delivers a rich anddetailed frequency response by combining its large surface area for tonal balance with its low-mass high-velocity material for exceptionally fast transientresponse.

The microphone head features an innovative capsule shock-mount system consisting of a 4-pointsuspension around the circumference of the capsule combined with a tuned pneumatic pump at thecapsule base, offering superior handling noisereduction to eliminate mechanical vibrations and noise in the mix.

The Memraflex grille is made of a durable tight-meshgrille wire that withstands extraordinarily roughtreatment. Your microphone head remains protected and looking good gig-after-gig, year-after-year.

For additional protection, the capsule contains ahydrophobic cloth membrane, which preventsmoisture and debris from reaching the diaphragm.The capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. Use the NDdynamic mics with confidence near speaker cabinetsand EMF generating equipment racks.

• Thread-on microphone head for Electro-Voice andother brand’s wireless handheld transmitters
• Excellent all-around vocal performance : crisp, clearand balanced
• Large diaphragm dynamic capsule creates a rich anddetailed frequency response
• Shock-mounted capsule minimizes handling noise
• Memraflex grille resists denting
• Element type : Dynamic neodymium magnet structure
• Frequency response, close : 30 Hz-17 kHz
• Frequency response, far : 70 Hz-17 kHz
• Polar pattern : Cardioid
• Sensitivity, open circuit voltage @ 1 kHz : 5.6 mV/Pascal (-45 dBV/Pa)
• Maximum SPL : 135.5 dB SPL (1% THD)
• Impedance : 1000 ohms
• Power requirements : 4-8 VDC
• Polarity : Positive pressure on diaphragm produces positive voltage at centercontact relative to ground contact
• Electrical contact : 3-Ring/3-Pin
• Threaded coupling : 1.25″ diameter, 28 UN-2A thread pitch
• Finish : Black polyurethane paint
• Materials : Aluminum, steel, steel wire grillescreen
• Dimensions, length diameter : 3.6 in. (91 mm) 2.0 in. (50.5 mm)
