Description

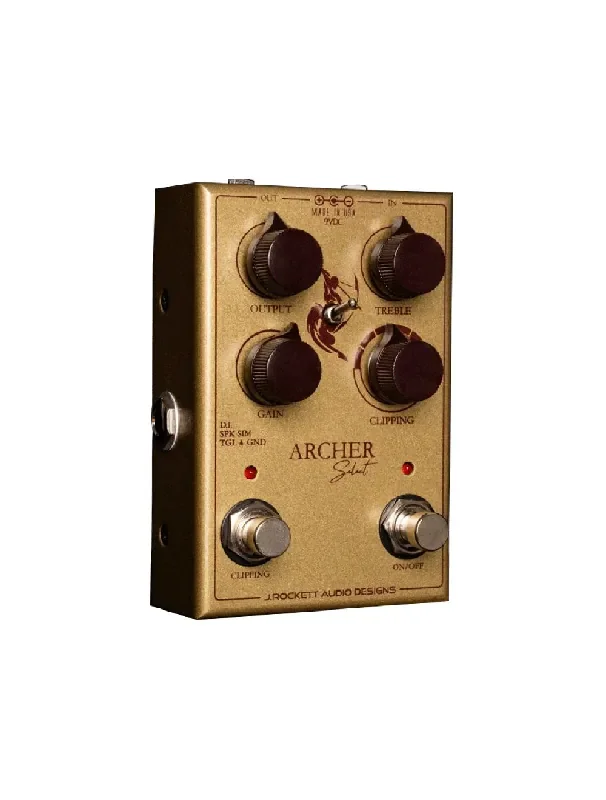

The Archer Select is truly the most versatile K-style overdrive yet. Featuring the ability to switch between 7 diodes ranging from lowest to highest output using the clipping knob and left footswitch players can create endless combinations of K-style tones from boosts to stacked drives and beyond
Featuring the diodes of the Archer, iKon, Jeff Mod Archer and 4 additional diodes including LED the Archer Select will provide endless tonal combinations
In addition to the overdrive section, a D.I. Speaker Simulator based on a British 4X12 cabinet is built in to monitor the OD sound via directly or have the option for direct recordings. The ground switch is added only for this section for a silent setup.
Controls
- Output : Controls overall volume output
- Gain : Controls the amount of gain
- DI Output and Speaker Simulation : Provides a direct output with speaker simulation for monitoring or recording
- Clipping Switch : Engages your selected clipping diode. When off it defaults to the stock diode
- Treble : Controls the high end
- Ground Switch : Ground lift for D.I.
- Clipping Switch : Allows for 6 additional clipping diode options operated by the “Clipping” foot switch
- Clipping Order : OA10 (Right footswitch default), 1N270, 1N695, 1N34A, D9B, D9E, Red LED
Size & Power
- 4.25″ x 2.75 x 1.25″
- 9 volt Negative tip adapter and a 5.5mm x 2.1mm jack.
- 28mV Current Draw
Inputs & Outputs
- Input
- Output
- 1/4″ DI Output
| CODE | JRT-ARCHERSELECT |
|---|---|
| Brand | J Rockett |
| Weight | 1.000000 |
