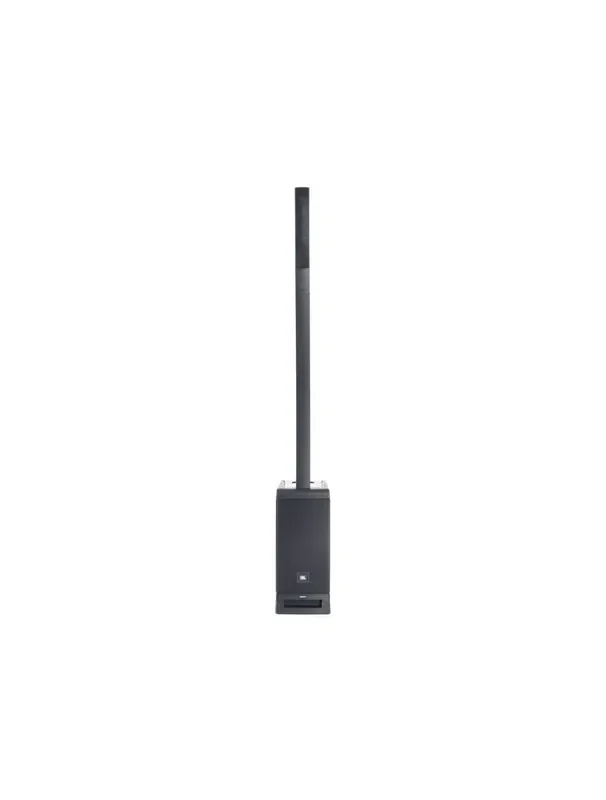

JBL IRX ONE

Description

The JBL IRX ONE All-in-One Column PA features an advanced acoustic package, 3-channel mixer and Bluetooth 5.0 audio streaming – all packed into an incredibly easy-to-use system that can be carried with one hand. Boasting legendary JBL fidelity and performance, IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2” high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8” woofer features a bass-reflex design that ensures low-frequency response down to 40 Hz. Designed to support a range of different users, IRX ONE features a 3-channel mixer that supports the most popular connections, including 1⁄4” and XLR inputs with included 48V phantom power and 1⁄4” balanced mix-out. DBX automatic feedback suppression (AFS), 5 EQ presets, Soundcraft audio ducking, and Bluetooth 5.0 audio streaming ensure a professional experience from start to finish. IRX ONE was created to be so simple-to-use that anyone from educators and presenters to hospitality or house of worship users can feel comfortable and confident using the system. Musicians, buskers and singer/songwriters also appreciate the plug-and-play design that gets them up and running and sounding great, right away.

Key Messages

Advanced Acoustic Technology And Seamless Coverage

IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2” high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8” woofer features a bass-reflex design to ensure low-frequency response down to 40 Hz.

Ergonomically-Optimized Design

IRX ONE is easy to carry with one hand; sets up and tears down in seconds; and the ergonomically-optimized carry handle minimizes wrist strain. Additionally, column spacers and the array cabinet conveniently fit into the back of the base unit.

Simple-To-Manage 3-Channel Mixer

IRX ONE features a 3-channel mixer that supports the most popular connections, including 1⁄4” and XLR inputs with included 48V phantom power and 1⁄4” balanced mix-out. DBX automatic feedback suppression (AFS), 5 EQ presets and Soundcraft audio ducking ensure a professional experience from start to finish.

Integrated Bluetooth 5.0 Audio Streaming

Using the latest Bluetooth 5.0 audio streaming chipset, IRX ONE delivers premium audio performance and long-distance streaming.

Built For Durability

IRX ONE is built for long-lasting durability that includes JBL’s rigorous 100-hour stress test, stringent road tests.

• C-shaped array of six 2” tweeters delivers superior clarity and rich sound
• 8” woofer with bass-reflex design generates natural, smooth low end, down to 40 Hz
• Frequency response: 40 Hz – 20 kHz
• Built-in 3-channel mixer
• Fixed bass and treble control, Automatic Feedback Suppression (AFS), phantom power, and system tuning presets
• Soundcraft Easy Ducking automatically turns down music when speech is detected
• I/O includes 1⁄4” and XLR inputs with included 48V phantom power and 1⁄4” balanced mix-out
• Bluetooth 5.0 audio streaming
• Column spacers and array cabinet conveniently fit into back of base unit
• Speaker automatically adjusts tuning depending on how many spacers are used for optimum sound performance
• Easy to carry with one hand; sets up and tears down in seconds
• Ergonomically-optimized carry handle minimizes wrist strain
• System Type : Powered Column PA Speaker
• Woofer Size : 8 Inch
• Tweeter Size : 2 Inch
• Tweeter Count : 6
• Max SPL : 118dB(peak)
• Frequency Range -10 : 40Hz ~ 20KHz @ 4pi
• Frequency Range -3 : 50Hz ~ 18KHz @ 4pi
• Horizontal Dispersion : 160°
• Vertical Dispersion : 80°
• Power Rating : 1300W Peak
• Ac Power Input : 100V – 120V or 220 – 240V
• Input Impedence : 4.4kΩ Input Mic 1MΩ balanced Hi-Z Jack
• Input Gain Mic : 55dB
• Input Gain Hi Z : 48dB
• Crossover Frequency : 260Hz
• I/0 : 2 – Mic/line XLR Combo 1 – HiZ In – 6.3mm jack 1 – Mix Out – 6.3mm jack  1 – Bluetooth SBC
• Cabinet : PP

CODE	JBL-IRXONE
Brand	JBL
Weight	40.540000
