Description

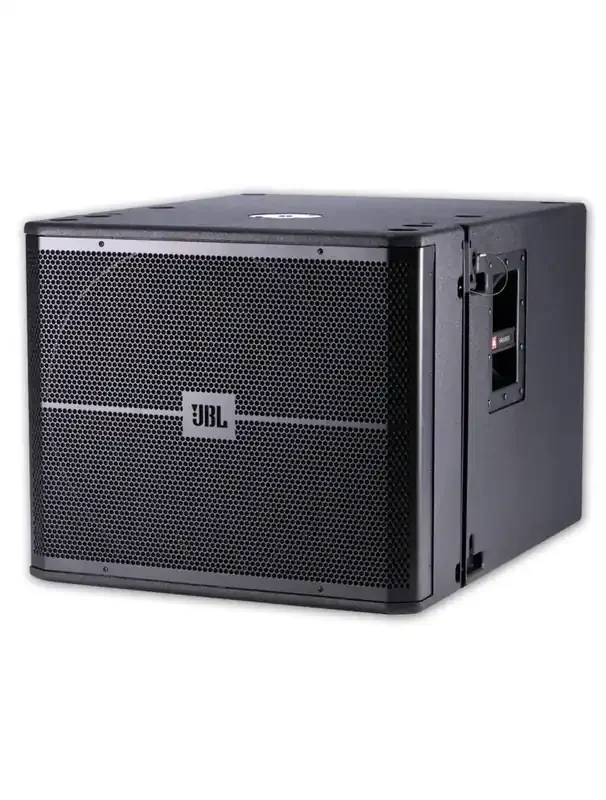

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive, 18″ woofer in a front-loaded, vented enclosure.
Overview
- Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
- 18 inch, 2268H Differential Drive woofer for extended low-frequency output
- Large port area for reduced distortion
- 20 mm threaded pole socket for solid, secure satellite speaker mounting
- Power Rating : 800 W / 1600 W / 3200 W
- Frequency Range : 31 Hz – 220 Hz
- Frequency Response : 34 Hz – 220 Hz
- Recommended Crossover Frequencies : 80 Hz, 24 dB / octave HPF, 80 Hz, 24 dB / octave LPF
- System Maximum SPL : 130 dB SPL peak
- System Sensitivity : 95 dB SPL
- LF Driver : 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
- Nominal Impedance : 8 ohms
- Active Tunings : Tunings available at www.jblpro.com
- Enclosure : Rectangular, 18 mm, 13-ply birch plywood
- Suspension / Mounting : Optional VRX932LA-AF line array frame kit or 10mm eyebolt
- Finish : Black DuraFlex finish
- Grille : Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
- Input Connectors : Neutrik Speakon NL-4 (x2)
| CODE | JBL-VRX918S |
|---|---|
| Brand | JBL |
| Weight | 81.000000 |
| Dimensions (WxHxD) | 23.5″ x 20″ x 29.5″ |
