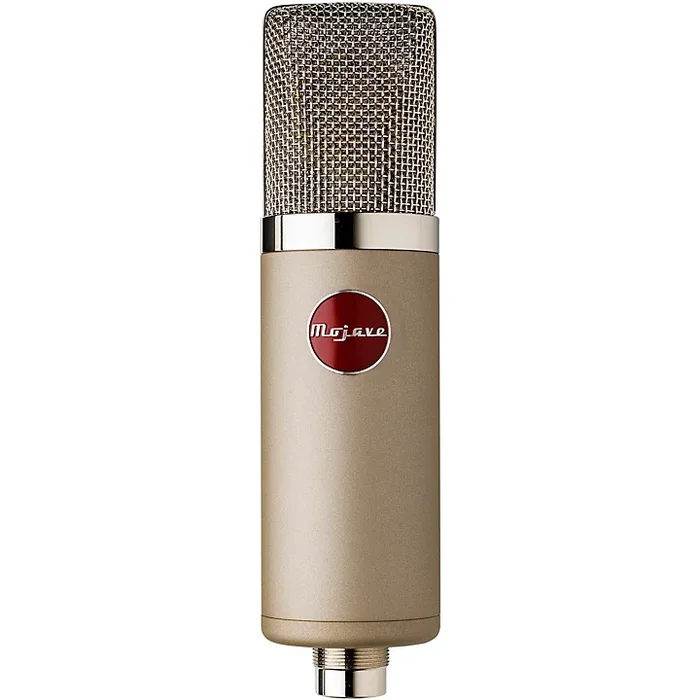

Mojave Audio MA-300SN Large-Diaphragm Multi-Pattern Tube Condenser Microphone – Satin Nickel

Description

The MA-300SN is a multi-pattern large diaphragm, vacuum tube condenser microphone with a satin nickel finish. Based upon the widely accepted MA-200 designed by David Royer, the MA-300SN adds a continuously variable pickup pattern selector, 15dB pad and a switchable bass roll-off. The MA-300SN gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.Utilizing hand-selected, double diaphragm 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-300SN performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-300SN power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-300SN microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.FeaturesRemotely controlled, continuously variable polar pattern selectorSwitchable 15dB padSwitchable Bass Roll-offHand-selected 3-micron double diaphragm capsuleJensen audio transformerMilitary grade JAN 5840 vacuum tubeInternal switchable power supply voltageUltra clean signal pathIncludes an aluminum case, AC power supply and cable, 16-foot microphone cable with 5-pin male and female connectors, and shock mountSatin nickel finishRecommended applications:Use anywhere you would use an expensive, large diaphragm tube microphone.VocalsVoice Over and BroadcastAcoustic InstrumentsPianoDrum Overheads, Drum RoomsOrchestral RecordingChoral RecordingSpecsTransducer type: externally polarized, pressure gradient capacitor – double diaphragmDiaphragm: 1″ diameter, gold sputteredDiaphragm thickness : 3-micronsPolar response: continuously variable from omnidirectional to figure-eightFrequency response: 20Hz to 20kHz, +3 dB at “flat” setting of bass cut switch. Bass cut switch provides 6dB per octave attenuation below 100 hertz in “cut” settingSensitivity: -37dB re 1v/paMaximum SPL: 120dB with pad off, 135dB with pad onDistortion: < 1% @ 117dB SPL, < 3% @ 125dB SPL with pad off, < 1% @ 132dB SPL, < 3% @ 140dB SPL with pad onSelf-noise: 14dB nominal, not to exceed 16dB (a weighted)Pad: 15dBBass cut: 6dB per octave below 100HzDimensions and WeightCarrying case with microphone, power supply, shockmount and cables: 13 lb.Microphone: 7 5/8" x 2", 1 lb.Mojave Audio MA-300SN Large-Diaphragm Multi-Pattern Tube Condenser Microphone – Satin Nickel
