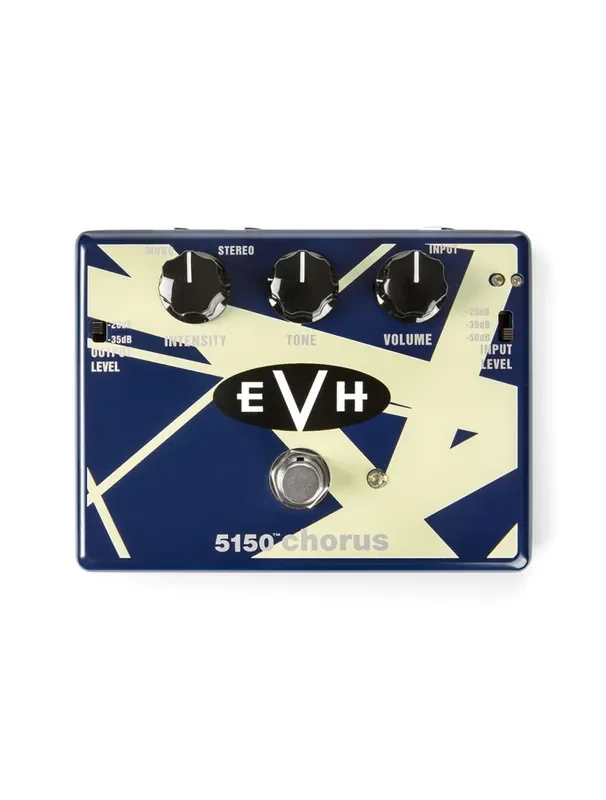

MXR EVH30 5150 Chorus Pedal

Description

The EVH 5150 Chorus is based on a legendary chorus unit that Eddie used to add texture and dimension to some of his most classic recordings from the early 1980s. It has a simple three-knob setup—Volume, Tone, and Intensity—with Input and Output Level pad switches, mono and stereo outputs, and an internal True/Buffered Bypass switch for modern rig flexibility. Combine this pedal with the 5150 Overdrive for a huge sound that’s thick and chewy.

• Captures Eddie Van Halen’s early ’80s chorus sound
• Legendary chorus circuit suped up for modern rig flexibility
• Input and Output Level switches to optimize signal-to-noise performance and achieve unity throughput gain
• Volume, Tone, & Intensity controls
• Internal True/Buffered Bypass switch
• Mono and Stereo outputs
• Input Impedance : 470KΩ
• Output Impedance : 4.7kΩ
• Noise Floor : -89dBV

Controls

• Input Level-20dB,-35dB,-50dB
• Treble : +12dB,-16dB,60kHz
• Output Level -20dB, -35dB
• Bypass : True/Buffered
• Current Draw : 95mA
