Description

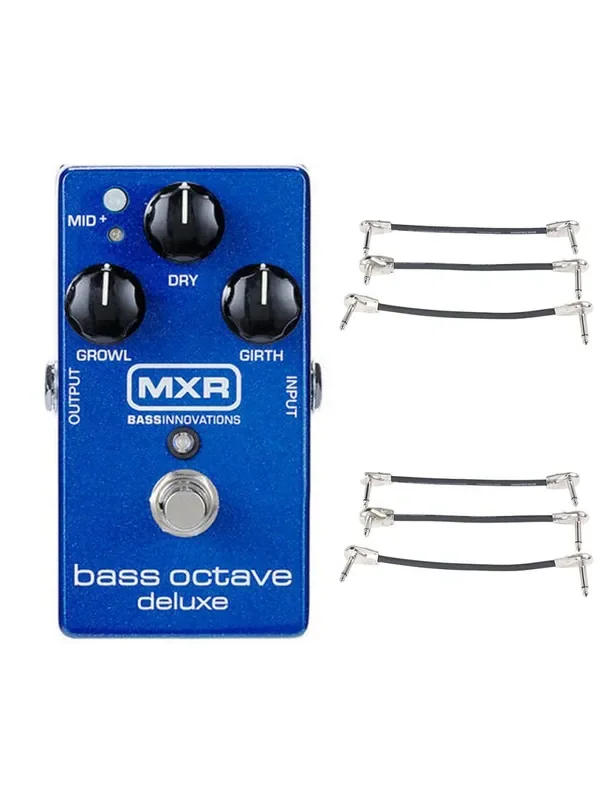

Product Description for MXR M288 Bass Octave Deluxe Pedal and Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
Package Includes :
1 X MXR M288 Bass Octave Deluxe Pedal
2 X Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
MXR M288 Bass Octave Deluxe Pedal
The Bass Octave Deluxe offers two independent analog sub-octave voices with a Dry control and a Mid+ switch to optimize the sound of your parallel clean signal.
The Bass Octave Deluxe is a dual-voice octave pedal that offers analog tone, true bypass, and a variety of tonal options. MXR’s 18 volt Constant Headroom Technology™ provides high headroom and superior tracking. Use the Dry knob to mix in your direct signal, and hit the Mid+ switch to add up to +14dB of internally adjustable mid frequencies (400Hz or 850Hz). Finally, mix in two separately controlled octave voices-Growl (for throaty tone) and Girth (for deep tone).
The Bass Octave Deluxe is a dual-voice octave pedal that offers analog tone, true bypass, and a variety of tonal options. MXR’s 18 volt Constant Headroom Technology™ provides high headroom and superior tracking. Use the Dry knob to mix in your direct signal, and hit the Mid+ switch to add up to +14dB of internally adjustable mid frequencies (400Hz or 850Hz). Finally, mix in two separately controlled octave voices-Growl (for throaty tone) and Girth (for deep tone).
Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
Backline Series 3-Pack of 6 Inch Strt to RA Patch Cables
MXR M288 Bass Octave Deluxe Pedal
Description
- Two independent sub-octave voices
- MID+ switch adds mid range boost
- Constant Headroom Technology™ for exceptional headroom and tracking
- Organic analog tone
- True bypass
Power
The MXR Bass Octave Deluxe is powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC Adapter such as the Dunlop ECB003/ECB003EU, or a DC Brick power supply
Directions
- Run a cable from your guitar to the Bass Octave Deluxe’s INPUT jack and run another cable from the Bass Octave Deluxe’s OUTPUT jack to your amplifier.
- Start with all controls at 12 o’clock.
- Turn the effect on by depressing the footswitch.
- Rotate DRY knob clockwise to increase level of dry signal or counterclockwise to decrease it.
- Rotate the GROWL knob clockwise to increase level of throaty midrange sub-octave voice or counterclockwise to decrease it.
- Rotate the GIRTH knob clockwise to increase level of smooth, deep sub-octave voice or counterclockwise to decrease it.
- Depress MID+ switch to boost midrange. Frequency and level are both adjustable via internal slider (up for 850Hz, down for 400Hz) and trim pot (+4dB when fully clockwise, +14dB fully counterclockwise
Specifications
- Input Impedance : 1 MΩ
- Output Impedance : < 600 Ω
- Noise Floor* : 85 dB
- Octave Bandpass
- -3 dB, 8 Hz to 46 Hz
- Control Range Dry : -∞ to +2.5 dB Girth : -∞ to +1 dB Growl : -∞ to +6 dB
- MID+ Switch** Gain : +4 dB to +14 dB
Frequency : 400 Hz or 850 Hz
- Bypass : True Hardwire
- Current Draw : 14 mA
- Power Supply : 9 volts DC
Controls
- MID+ switch adds up to +14dBof internally adjustable midrange(blue LED indicates on)
- DRY knob controls volume ofclean bass signal
- GROWL knob controls volume of throaty, midrange sub-octave voice
- GIRTH knob controls volume of deep and smooth sub-octave voice
- FOOTSWITCH toggles effect on/ bypass (blue LED indicates on)
Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
- 6-inch Instrument/Patch Cable, 3-Pack
- 1/4-inch Right Angle to 1/4-inch Right Angle
- Professional Low-Noise Cable
- Fine Stranded Oxygen Free Copper Conductor for High-Quality Signal Transmission
- Thick and Durable 6.5 mm Soft PVC Jacket
- Shrink Sealed Wire Connection for Protection and Strain Relief
- Reliable and Sturdy Connectors
| CODE | MXR-M288-BUN1 |
|---|---|
| Brand | MXR |
| Weight | 1.400000 |
