Description

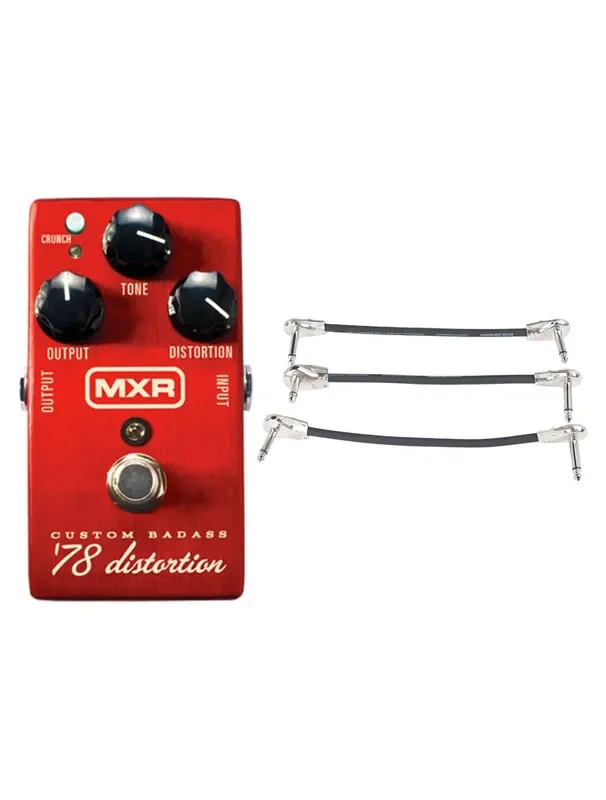

Product Description for MXR M78 Custom Badass ’78 Distortion and Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
Package Includes :
1x MXR M78 Custom Badass ’78 Distortion
1x Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
MXR M78 Custom Badass ’78 Distortion
This pedal features a hot-rodded classic circuit that roars with huge amp stack tones and old school distortion with a Crunch switch to boost harmonic content.
The MXR Custom Badass ’78 Distortion is a factory-modded pedal that roars with huge amp stack tones and old school tube amp-like distortion.
We took a classic distortion circuit and hot-rodded it to the next level for over-the-top soaring leads and rich, saturated rhythms. With only three knobs, dialing in Badass tone is a cinch. The CRUNCH button allows you to choose between two different modes of diode and LED clipping, boosting the harmonic content of the distortion.
The ’78 Distortion’s wide open amp-like sound sounds great whether it’s in front of a clean amp, a slightly dirty amp, or a full on overdriven amp. Under the hood, this high performance machine features top notch circuitry and hardware meant for a lifetime of use.
Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
Backline Series 3-Pack of 6 Inch Strt to RA Patch Cables
MXR M78 Custom Badass ’78 Distortion
- A hot-rodded classic circuit
- Roars with huge amp stack tones and old school distortion
- Delivers soaring leads and rich, saturated rhythms
- Crunch button boosts the dynamic range and harmonic content of distortion
Power
- The MXR Custom Badass ’78 is powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC adapter such as the Dunlop ECB003/ECB003E, or a DC Brick power supply
Directions
- Run a cable from your guitar to the ’78 Distortion’s Input jack and run another cable from the 78 Distortion’s Output jack to your amplifier.
- Set all controls to the 12 o’clock position
- Turn the effect on by depressing the footswitch.
- Rotating the Distortion knob clockwise increases the amount of distortion while rotating it counterclockwise decreases it.
- Rotate the Tone knob clockwise for a brighter sound; rotate the Tone knob counterclockwise for a darker sound.
- Rotating the Output knob clockwise raises the volume of the effect while rotating it counterclockwise lowers the volume.
- Engage Crunch button (blue LED lit) to boost the dynamic range and harmonic content of distortion.
- Input Impedance : 1 MΩ
- Output Impedance : 6 kΩ
- Nominal Input Level : -22 dBV
- Max Output Level
- Crunch Off : -5 dBV
- Crunch On : -2 dBV
- Noise Floor : -84 dBV
- Distortion Range : 27 dB at 500 Hz
- Max System Gain : 43 dB
- Tone Control
- Tilt EQ : ± 4 dB at 100 Hz ,± 5 dB at 2 kHz
- Bypass : True Hardwire
- Current Draw
- LEDs Off : 2.5 mA
- LEDs On : 6 mA
- Power Supply : 9 volts DC
Controls
- Crunch button increases dynamic range of distortion
- Tone knob controls the color of distorted signal
- Output knob controls the volume of the effect
- Distortion knob controls the amount of distortion
- Footswitch toggles effect on/ bypass (red LED indicates on)
Gator Cableworks Backline Series 6″ Instrument/Patch Cable, 3-Pack
- 6-inch Instrument/Patch Cable, 3-Pack
- 1/4-inch Right Angle to 1/4-inch Right Angle
- Professional Low-Noise Cable
- Fine Stranded Oxygen Free Copper Conductor for High-Quality Signal Transmission
- Thick and Durable 6.5 mm Soft PVC Jacket
- Shrink Sealed Wire Connection for Protection and Strain Relief
- Reliable and Sturdy Connectors
| CODE | MXR-M78-BUN5 |
|---|---|
| Brand | MXR |
| Weight | 2.000000 |
