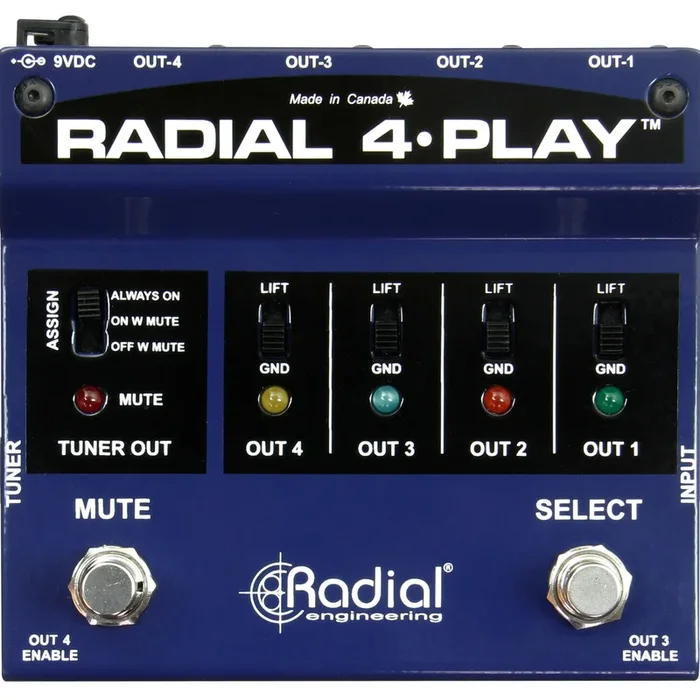

Radial – 4 Play DI R8001432 00

Description

Features• Lets you select between four balanced DI outputs• Compact design fits on pedalboard• High visibility LEDs provide status indication• Mute switch for changing instruments or tuningBenefits• Gets rid of the spaghetti of cables on stage• Gives each instrument its own audio channel• Eliminates hand signals to the audio engineers• Improves sound of each instrumentCool stuff• Tuner output is assignable and can be always on• Sequential selector footswitch reduces the size• Ground lift switches to eliminate hum and buzz• Can be used like a multi-channel amp with acoustic guitarSpecificationsAudio circuit type:Classic Class-A FET input with balanced audio grade opamp outputNumber of channels:4Frequency response:20Hz – 20kHzDynamic range:113dBuGain:0dBuClip Level:+13dBTotal harmonic distortion:0.03%Intermodulation Distortion:0.02%Phase Deviation:-0.12° @ -20dBu / 1kHzInput Impedance:10M ΩOutput Impedance:5.4K ΩNoise:-100dBuMaximum Input:+8dBuFeaturesGround liftInput Connectors:1/4″Output Connectors:4x XLRExtras:Tuner outputGeneralConstruction:14-gauge steel chassis & outer coatSize (L x W x D):5″ x 4.7″ x 2″Power:9V Adaptor / 80mA center pin negativeConditions:For use in dry locations only between 5°C and 40°CWarranty:Radial 3-year, transferableRadial – 4 Play DI R8001432 00
