Description

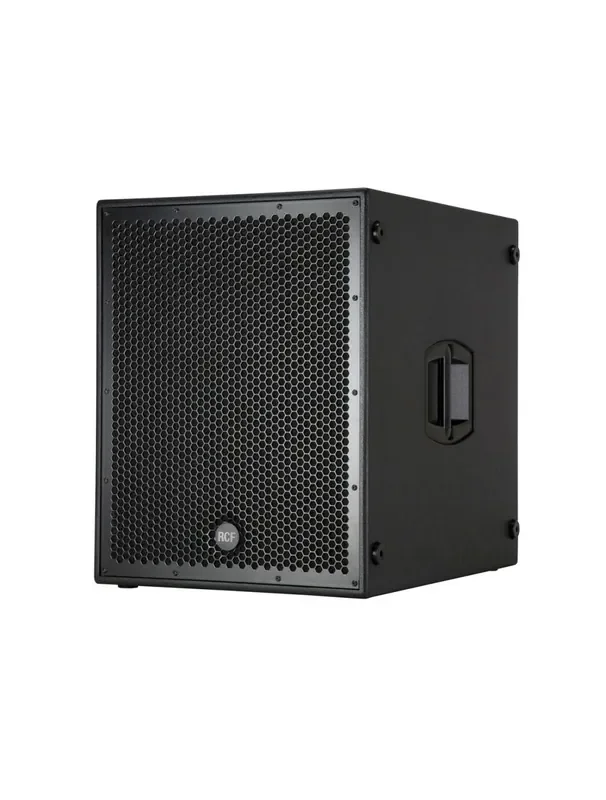

The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category. Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.
FEATURES
- 2500 Watt Peak, 1250 Wat RMS
- 136 dB max SPL
- 30 Hz – 120 Hz frequency response
- 18″ Woofer, 4.0″ voice coil vented woofer
- DSP controlled Input section with selectable presets
- Delay control
- Baltic birch tour grade cabinet
- Compatible with NXL23-A (stacking)
- Compatible with NXL24-A (stacking)
- Multiple configurations with HDL 10-A and HDL 20-A
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:30 Hz ÷ 120 Hz
- Max SPL:136 dB
- Woofer:18″, 4.0″ v.c.
INPUT/OUTPUT SECTION
- Input signal:bal/unbal
- Input connectors:XLR
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
- Crossover frequencies:Selectable 90 Hz – 120 Hz Hz
- Protections:Thermal, RMS
- Limiter:Fast limiter
- Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid
AMPLIFIER SPECIFICATIONS
- Total power:2500 W PEAK
- Low frequencies:2500 W PEAK
- Total power:1250 W RMS
- Low frequencies:1250 W RMS
- Cooling:Convection
- Connections:Powercon in-out
CABINET
- Cabinet Material:Baltic Birch
- Hardware:2xM20, 4 x wheels mounting points
- Handles:2 side
- Colour:Black
PHYSICAL SPECIFICATIONS
- Height:700 / 22.56 mm/inch
- Width:557.5 / 21.95 mm/inch
- Depth:700 / 27.56 mm/inch
- Net Weight:51.0 / 112.20 kg/lbs
| CODE | RCF-SUB8004AS-B |
|---|---|
| Brand | RCF |
| Weight | 132.280000 |
