Description

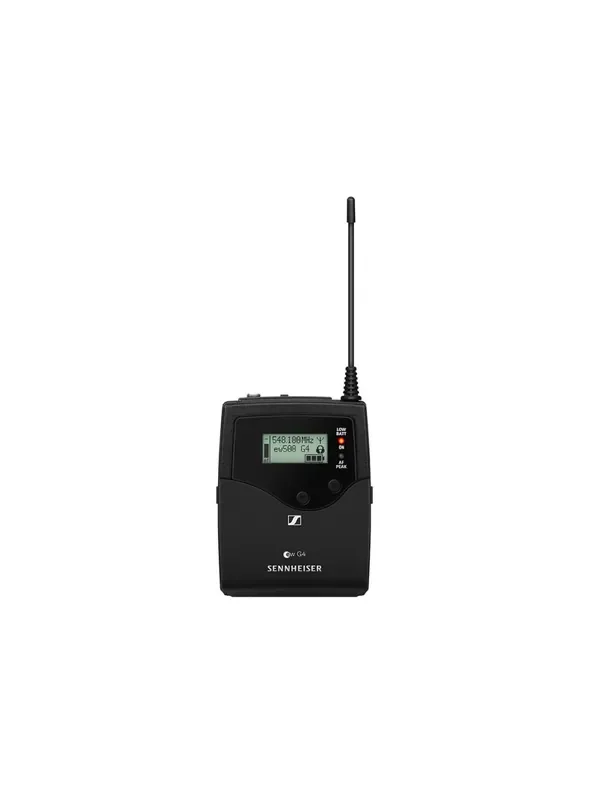

Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
- Powerful bodypack transmitter with increased band- width and transmission power
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequen- cies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordi- nation in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
RF characteristics
- Modulation : Wideband FM
- Frequency ranges : Aw+: 470 – 558 MHz
- Transmission frequencies
- Max. 2880 frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 32 factory-pre-set channels, no intermodulation
- 6 frequency banks with up to 32 programmable channels
- Switching bandwidth : up to 72 MHz
- Nominal/peak deviation : ±24 kHz / ±48 kHz
- Frequency stability : ≤ ±15 ppm
- RF output power at 50 Ω
- switchable: Low: typ. 10 mW
- Standard: typ. 30 mW High: typ. 50 mW
- Pilot tone squelch : Can be switched off
AF characteristics
- Compander system : Sennheiser HDX
AF Frequency Response
- Mic: 80 – 18,000 Hz
- Line: 25 – 18,000 Hz
- Signal-to-noise ratio (1 mV, peak deviation) : ≥ 115 dBA
- Total harmonic distortion (THD) : ≤ 0.9 %
- Max. microphone/line input voltage : 3 V
- Microphone/line input impedance : 40 kΩ, unbalanced / 1 MΩ
- Input capacitance : Switchable
- Setting range for input sensitivity : 60 dB, adjustable in 3 dB steps
Overall Device
- Temperature range : -10 °C to +55 °C
- Power supply : 2 AA batteries, 1.5 V or BA 2015 accupack
- Nominal voltage : 3 V battery / 2.4 V rechargeable battery
- Current consumption : at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
- Operating time : Typically 8 h
- Dimensions : Approx. 82 x 64 x 24 mm
| CODE | SEN-SK500G4-AW+ |
|---|---|
| Brand | Sennheiser |
| Weight | 0.800000 |
