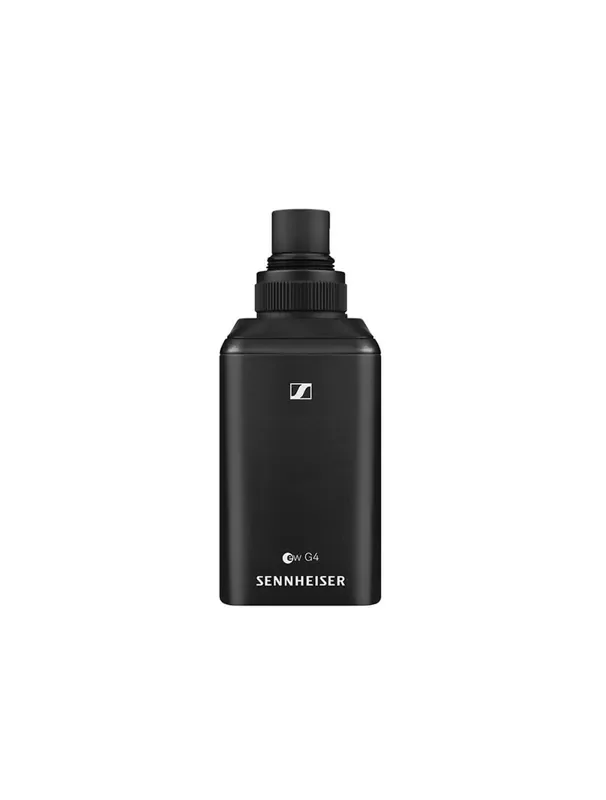

Sennheiser SKP 500 G4 (Band AW+)

Description

Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wire- less G4 500P Series systems. For professional film productions.

• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

RF characteristics

• Modulation : Wideband FM
• Frequency ranges : Aw+: 470 – 558 MHz

Transmission Frequencies

• Max. 2880 frequencies, adjustable in 25 kHz steps
• 20 frequency banks, each with up to 32 factory-pre-set channels, no intermodulation
• 6 frequency banks with up to 32 programmable channels
• Switching bandwidth : up to 72 MHz
• Nominal/peak deviation : ±24 kHz / ±48 kHz
• Frequency stability : ≤ ±15 ppm

RF output power at 50 Ω

• switchable: Low: typ. 10 mW
• Standard: typ. 30 mW High: typ. 50 mW
• Pilot tone squelch : Can be switched off

AF characteristics

• Compander system : Sennheiser HDX
• AF frequency response : 80 – 18,000 Hz
• Signal-to-noise ratio (1 mV, peak deviation) : ≥ 120 dBA
• Total harmonic distortion (THD) : ≤ 0.9 %
• Max. input voltage : 6 V
• Input impedance : 68 kΩ, unbalanced
• Input capacitance : Switchable
• Setting range for input sensitivity : 48 dB, adjustable in 6 dB steps

Overall Device

• Temperature range : -10 °C to +55 °C
• Power supply : 2 AA batteries, 1.5 V or BA 2015 accupack
• Nominal voltage : 3 V battery / 2.4 V rechargeable battery
• Current consumption : at nominal voltage: typ. 210 mA with transmitter switched off: ≤ 25 µA
• Operating time : Typically 8 h
• Dimensions : Approx. 105 x 43 x 43 mm

CODE	SEN-SKP500G4-AW+
Brand	Sennheiser
Weight	1.000000
