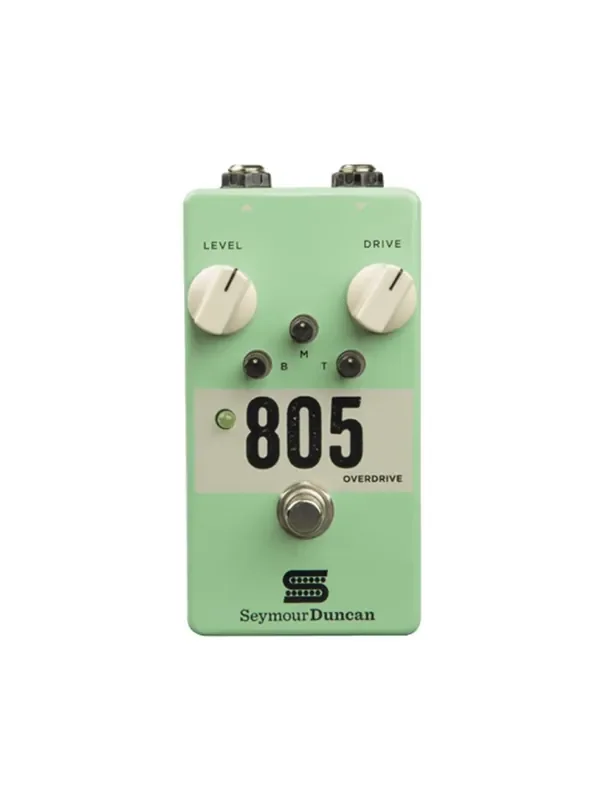

Seymour Duncan 805 Overdrive Pedal

Description

A classic overdrive that gives a subtle boost, fat crunch, or a searing tone to your solos. 3-band active EQ shapes your tone just the way you want.

• Distortion Circuitry : Glass diode, back-to-back stack.
• Bypass : True bypass
• Gain Control Range : 8dB to 36dB.
• THD @10mVrms input @ 1 kHz with 12 dB of gain : 0.15%
• Max Output before Saturation : 0.6Vrms
• Input Impedance : 470k Ohms
• Output Impedance : 1k Ohms
• Power : 9V battery or external 9 to 18V Regulated DC Adapter (center negative)
• Current consumption : 4.5mA
• Dimensions : 2.61″ X 4.90″ X 1.45″

EQ Center Frequencies

• Bass – 90 Hz +/- 11dB
• Mid – 750 Hz +/- 11dB
• Treble – 2.1 kHz +/- 12dB

Signal To Noise Ratio

• Minimum gain, 20 to 20kHz – 112dBV
• Minimum gain, 400 to 20kHz – 114dBV
• Maximum gain, 20 to 20kHz – 97.5dBV
• Maximum gain, 400 to 20kHz – 98 dBV
