Description

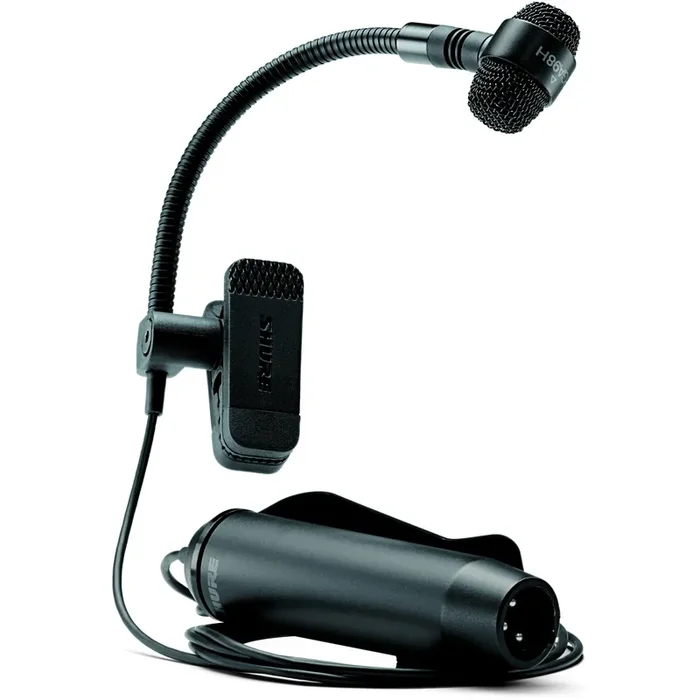

Cut through the Noise – The Shure PGA98H-XLR Cardioid Condenser Instrument Microphone
The Shure PGA98H is a professional quality wind instrument microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.
Tailored microphone cartridge design for clear reproduction of wind instrument sound sources
Flexible gooseneck design makes accurate positioning quick and easy
Integrated horn clamp for quick and easy mounting
In-line preamplifier requires phantom power and a direct XLR connection
Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
Updated industrial design with black metallic finish and grille for unobtrusive visual presence
With TA4F connector for use with wireless bodypack systems (no preamplifier provided)
Zipper pouch included for additional protection during storage or transport
Legendary Shure quality design and construction for exceptional performance in rigorous environments
SPECIFICATIONS
Type: Electret condenser
Frequency Response: 60 – 20,000 Hz
Polar Pattern: Cardioid
Output Impedance: 850 Ω
Sensitivity at 1 kHz, open circuit voltage: -52 dBV/Pa (2.51 mV), 1 Pa=94 dB SPL
Maximum SPL: 1 kHz at 1% THD, 1 kΩ 130 dB SPL
Self-Noise A-weighted, typical: 27 dB SPL-A
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight: 210 g (8 oz)
Connector PGA98H-XLR/PGA98H-LC: Three-pin professional audio (XLR), male
PGA98H-TQG: 4-pin, female TA4F miniature XLR connector
Housing: Cast Zinc
Power Requirements 11–52 VDC phantom power (2 mA)
Manufacturer: Shure
Model: PGA98H-XLR
SKU: I354770-N-9-WHXD
UPC: 042406396752
