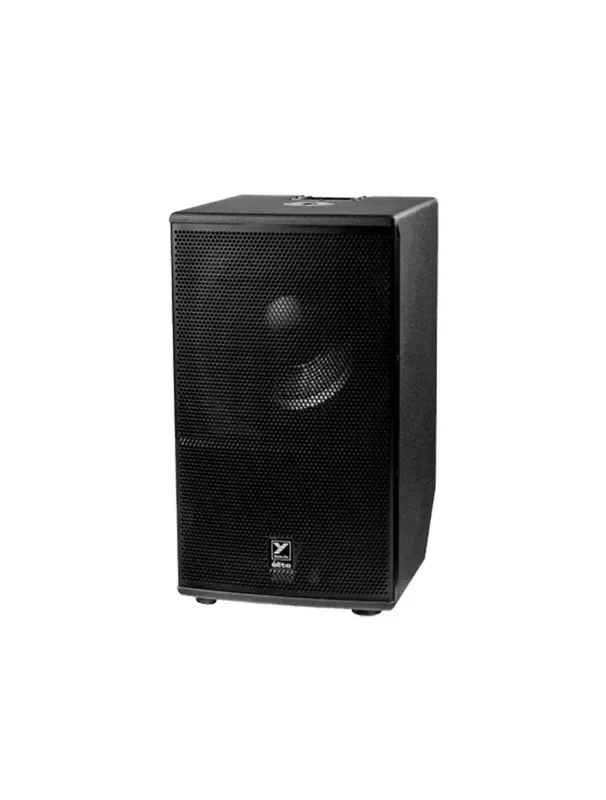

Yorkville ES15P Powered Subwoofer

Description

The ES18P is a modern-day update of our flagship ‘giant killer’, the LS801P. The cabinet dimensions have been altered to offer better mobility, but the punch is still there. We’ve also added a little-brother to the family, by scaling down the 18″” subwoofer design into a 15″” platform. The ES15P design dials up the watts and incorporates a custom engineered 15″” woofer to produce an astonishing amount of low end output in a 15″” subwoofer.

• Next Generation Rear Horn Loaded Powered Subwoofer Design
• Class Leading Output and Bass Response
• Astonishing Output for a ‘Car Friendly’ 15-inch Subwoofer
• Custom Designed Long Excursion Cast Frame 15-inch Driver with 4-inch Voicecoil
• Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
• Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
• iOS and Android App for Added Subwoofer Control
• System Type : Rear Horn Loaded Subwoofer
• Active or Passive : Active
• Program Power (Watts) : 1800 Watts (3600 Watts Peak)
• Max SPL (dB) : 138dB Peak (132dB Continuous)
• Frequency Response (Hz +/- 3dB) : 45 – 150 (Hz +/- 3dB)
• LF Driver(s) : 15-inch Cast Frame Woofer w/4-inch Voicecoil
• LF Protection : Thermal / Overcurrent (X-max) / Clip
• Power Consumption (typ/max) : 120V (5.5A / 6.9A), 230V (2.9A / 3.6A)
• Level Controls : Master – Sub Level
• LED Indicators : Power, Activity, Protection (Clip, X-Max, Temp)
• High Frequency Roll-off – 80Hz to 150 Hz
• Wheels : 2 x Rear tilt-back
• Bar Handles : 1 x (Top Rear Edge ), 1 x (Bo
• Pole Mount Adapter (1 3/8″-3.5cm) : 1 (Top) (1 3/8″-3.5cm)
• Enclosure Materials : 15mm (5/8inch) 11-ply Russian Birch

In / Out Connections :

• 1 x XLR Input
• 1 x XLR Mono Blend Input
• 1 x ¼-inch Link Input
• 1 x ¼-inch Link Output
• 1 x XLR Link Output

Specifications
